AI & Azure Security Architecture · Public Edition
How I assess a production GenAI document platform across its source code, cloud footprint and AI/LLM attack surface: two complementary reviews, every conclusion tied to reproducible evidence.
Code, prompts and model integration
How AI/LLM threats, bounded model controls, adversarial regression, application boundaries, safe file and output handling, and software supply-chain risks are assessed through source and repository evidence.

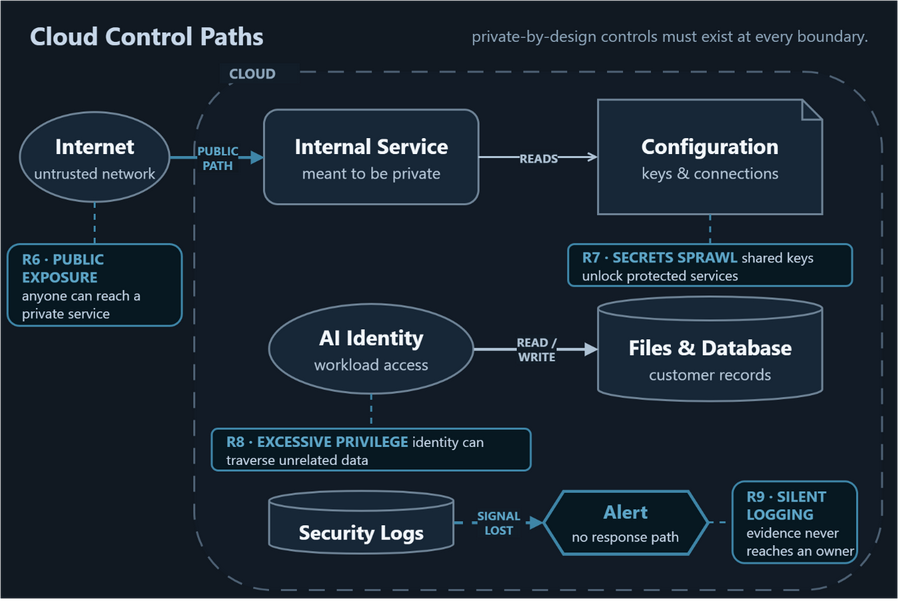

Infrastructure and identity posture
How identities, networks, configuration, data services, containers, release controls and operational telemetry are assessed from the perspective of the running cloud environment.
Relationship. The Azure review assesses running configuration, service relationships and observable operational controls using safe, read-only evidence. The application review assesses source code, infrastructure as code, dependencies and delivery artifacts. Areas of overlap are intentionally compared. Agreement between the two evidence streams strengthens confidence, while differences reflect their distinct scopes and evidence boundaries.

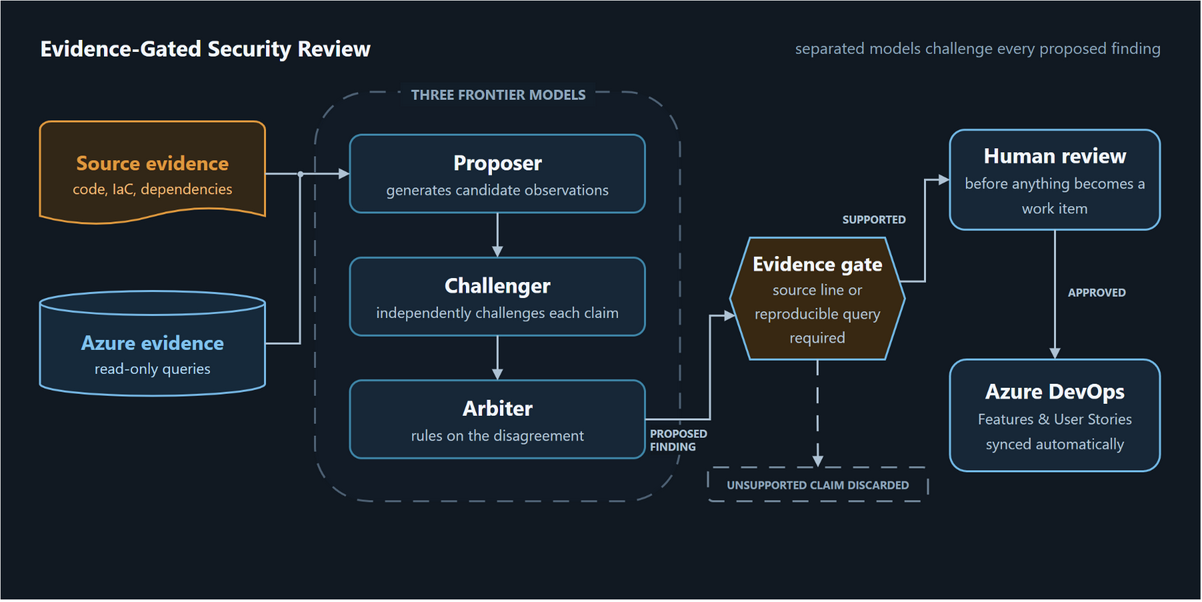

I ran the assessment with Threat Tribunal, my multi-model security harness: complementary proposal, challenge and arbitration roles across Fable, Claude Opus and GPT-5.6. No model-generated claim became delivery work without human review and supporting evidence. The work produced one report grounded in the deployed Azure footprint and another grounded in application source and repository artifacts.

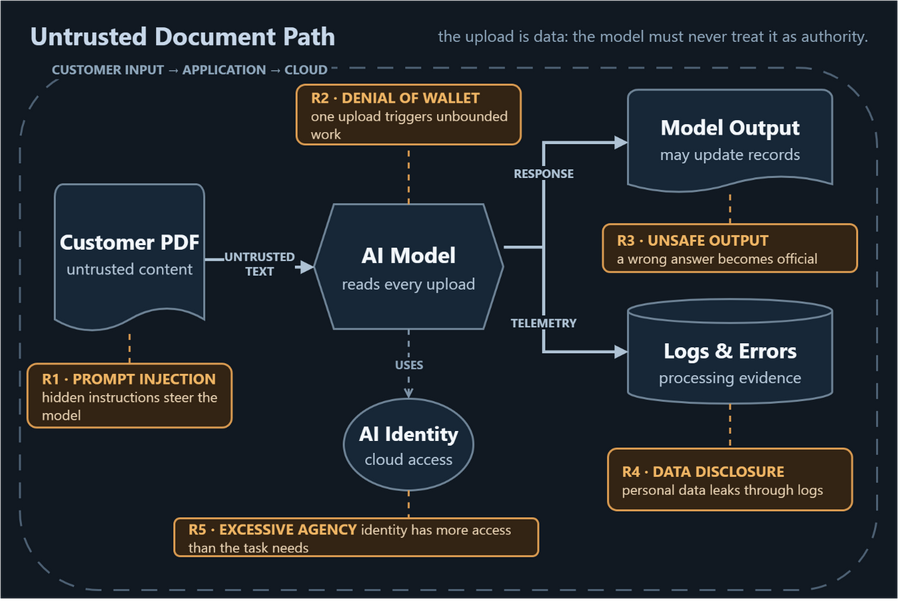

Document-processing applications create a distinctive trust problem: user prompts, retrieved records and uploaded files can all become model input. A document that looks ordinary to a person can contain instructions intended for the model.
Design position. Treat the model as an untrusted, probabilistic component inside a bounded application. Enforce authorization, schemas, tool permissions and approval outside the model.
Reports are useful only when teams can act on them. Human-approved remediation findings are automatically mapped into Azure DevOps Features and User Stories with ownership, acceptance criteria, dependencies and verification evidence. My evidence-tracked, idempotent publisher synchronizes the mapped backlog.

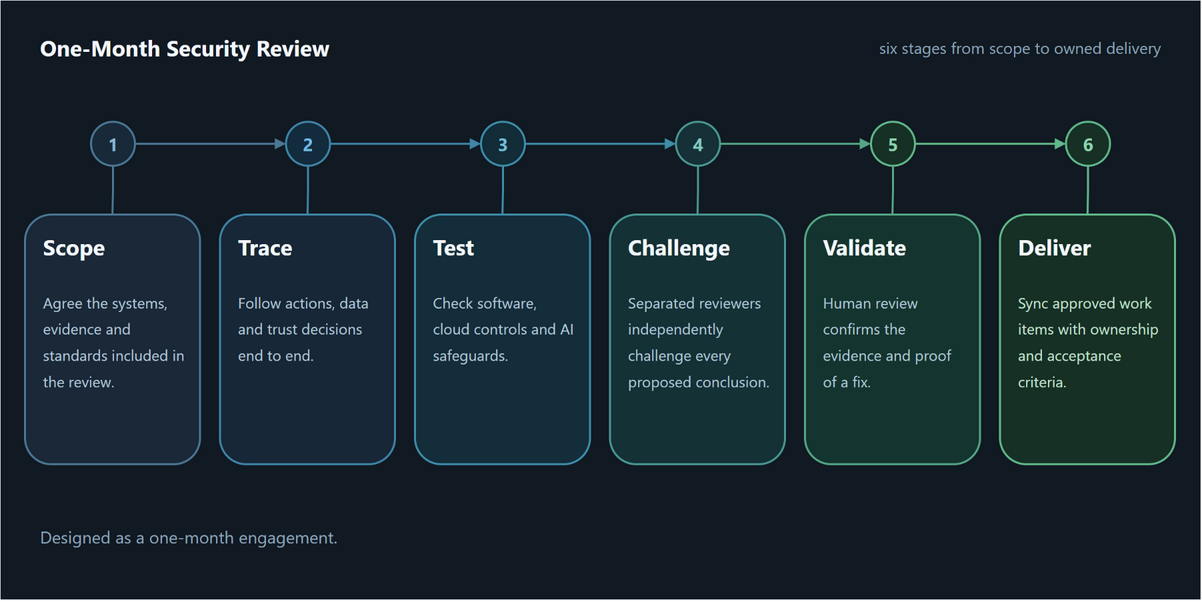

Agree the systems, evidence boundaries and standards in view.
Reconstruct the as-built architecture and trust boundaries.
Run Threat Tribunal across both evidence streams.
Human review of every model-proposed observation.
Governed backlog, verification evidence and the delivery roadmap.
Designed as a one-month engagement.
External-sharing boundary. This purpose-built public edition is intended for external sharing. It contains no client names, tenant or subscription identifiers, resource names, internal URLs, work-item references, source paths, commit identifiers, screenshots, sample data, credentials, or combinations of details that could reconstruct a specific finding.
Both reports include explicitly labelled fictional severity examples to demonstrate risk communication, remediation design and verification. They are not engagement findings and do not describe the reviewed environment.
Their cross-reference links point only to newly authored demonstration source, Azure and tool-output examples. No client evidence destination exists in the public editions.
This publication explains the assessment scope, methodology, control domains and generalized security lessons. It does not reproduce client-specific findings, severity ratings, evidence, remediation status or current production configuration. It is not a penetration-test report, certification, assurance opinion or statement that any example weakness was present. Severity labels in both reports apply only to explicitly labelled fictional examples. Inclusion of a topic means it was assessed, not that a finding existed.
I'm a Senior Azure AI and Software Architect. I build agentic AI platforms on Azure and run AI/LLM security and cost optimization assessments of production GenAI systems. One rule anchors both: code owns deterministic facts, and LLMs are bound to reasoning, annotation and judgment.
Informed by OWASP LLM Top 10 OWASP Top 10 / ASVS NIST AI RMF (GenAI Profile) MITRE ATLAS / CWE Microsoft Zero Trust
